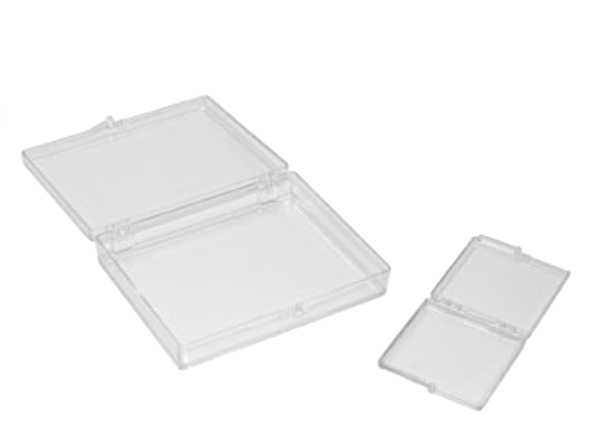

Gel-Box AD Series - Clear Plastic

Gel-Box AD Series - Clear Plastic

These products are designed to protect and store sensitive devices and specimens during transport, processing, inspection and assembly. Devices can be loaded and removed easily using tweezers or by hand from the unique highly cross-linked Gel polymer. The degree of holding force of the Gel is depending on the tackiness of the Gel material, which is called Retention Level.
These the Retention Level available:
 - Low retention level - X0 - for highly polished surfaces
 - Medium retention level - X4 - for pre-polished and/or etched surfaces
 - High retention level - X8 - for rough surfaces like ceramics

Model Dimensions mm  Retention level pkg
AD-11T-00-X0 25.4 x 25.4 x 6.4mm  Gel XO 50
AD-11T-00-X4 25.4 x 25.4 x 6.4mm Gel X4 50
AD-11T-00-X8 25.4 x 25.4 x 6.4mm Gel X8 50
AD-22T-00-X0 50.8 x 50.8 x 6.4mm  Gel X0 50
AD-22T-00-X4 50.8 x 50.8 x 6.4mm  Gel X4 50
AD-22T-00-X8 50.8 x 50.8 x 6.4mm Gel X8 50
AD-23T-00-X0 50.8 x 76.2 x 9.5mm Gel X0 50
AD-23T-00-X4 50.8 x 76.2 x 9.5mm  Gel X4 50
AD-23T-00-X8 50.8 x 76.2 x 9.5mm  Gel X8 50
AD-1135T-00-X4 89 x 114 x 12.7mm Gel X4 50
Model
